Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the trunk luggage side trim [RH].
(Refer to Body - "TRUNK TRIM ")

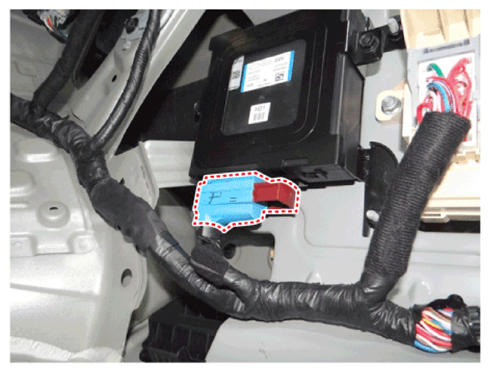

- Disconnect the connector

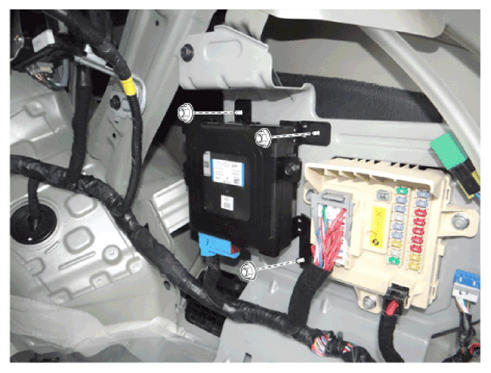

- Remove the ECS control unit by loosening the mounting nuts.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

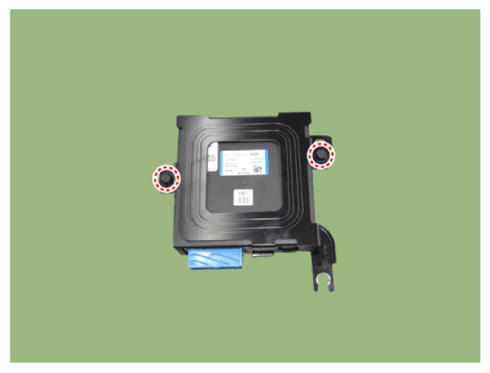

- Remove the ECU bracket.
