Monitor GDS Data
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON".

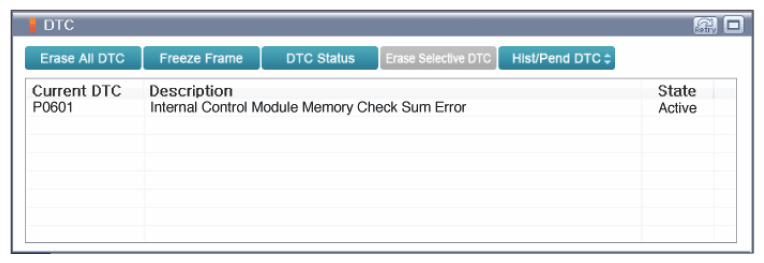

- Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
- Is DTC status displayed as Present?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Fault might be intermittent caused by poor contact in the sensor's and/or TCM's connector or was repaired and TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
