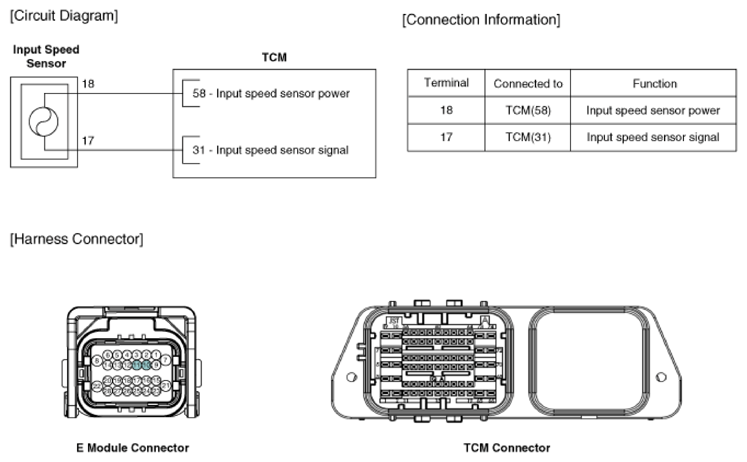

Home › Genesis › 2021 › G90 5.0 Ultimate, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission Control System - 5.0L › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
