Sensor Status Method

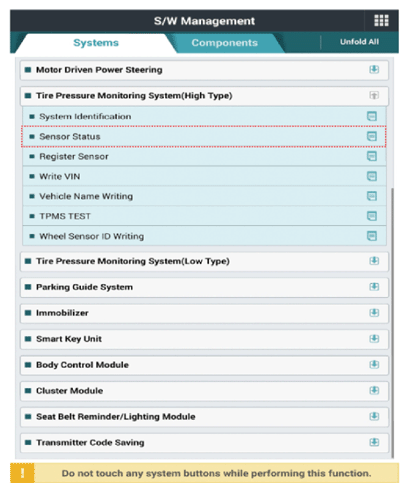

Courtesy of HYUNDAI MOTOR AMERICA

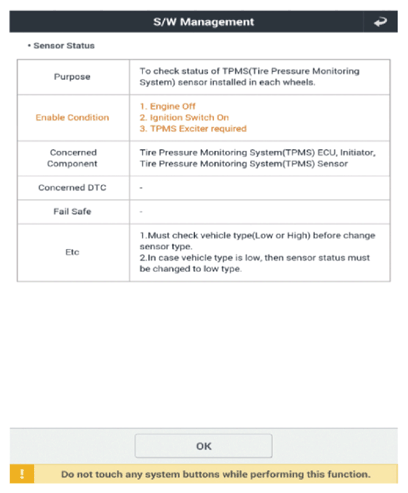

Courtesy of HYUNDAI MOTOR AMERICA

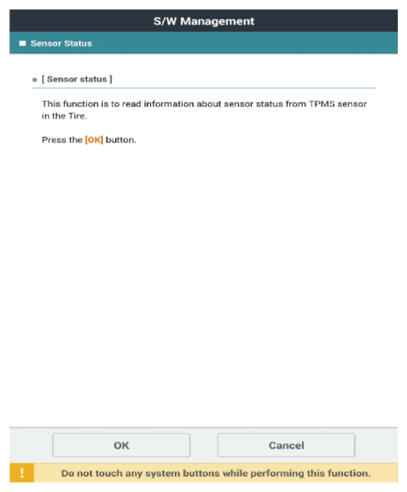

Courtesy of HYUNDAI MOTOR AMERICA

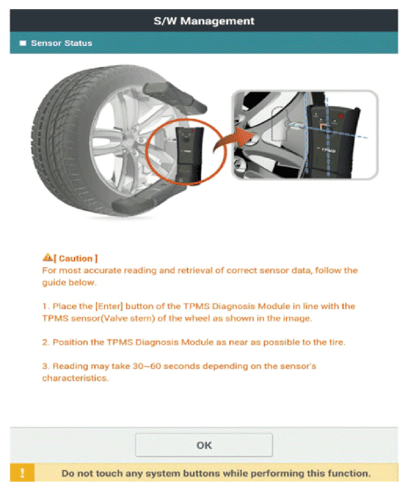

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

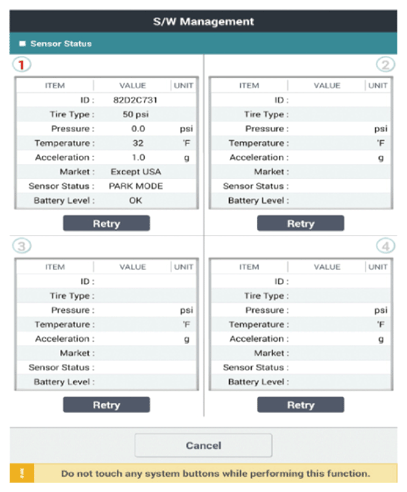

Each entry must be checked for normal operation of each sensor.

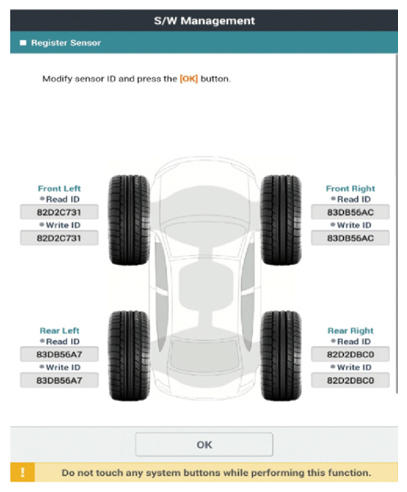

After replacing the tires or sensors, check for proper operation of sensor after sensor registration process.

Courtesy of HYUNDAI MOTOR AMERICA
