Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

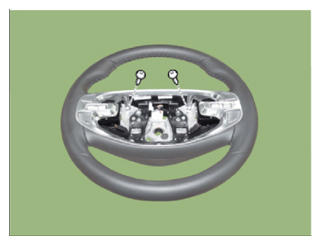

- Remove the steering wheel.
(Refer to Steering System - Steering Wheel - "REPAIR PROCEDURES ")

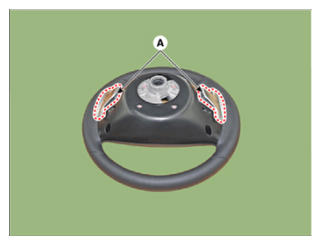

- Remove puddle shift switchs (A) after loosening mounting screws.

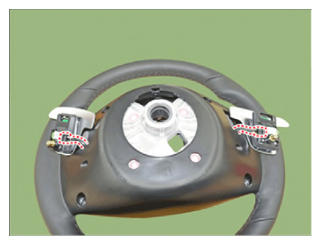

- Disconnect puddle shift switch connectors.

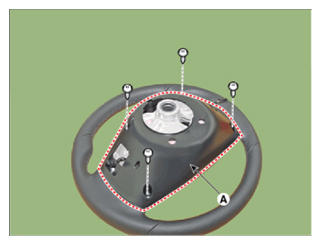

- Remove the steering lower cover (A).

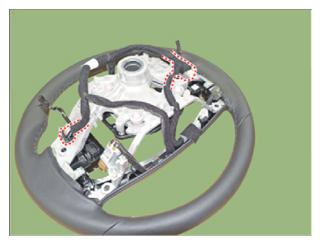

- Disconnect steering wheel switch connectors.

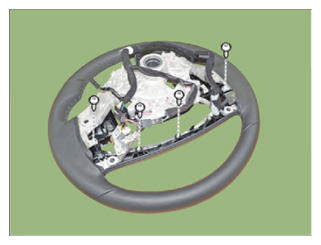

- Remove the steering wheel switch after loosening mounting screws.
