Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT OUTER SHIELD COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to Front Seat - "FRONT SEAT INNER SHIELD COVER ")

  4. Remove the front seat lower protector (A).

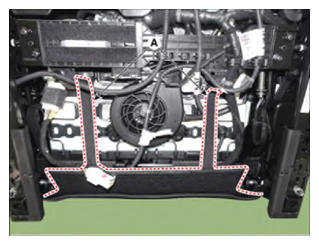

    G14723588Courtesy of HYUNDAI MOTOR AMERICA
  5. Press the lock pin and separate the front seat cushion connectors (A).

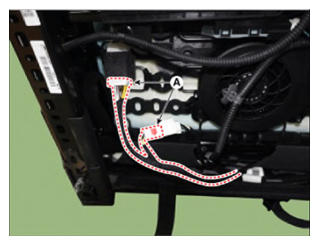

    G14723589Courtesy of HYUNDAI MOTOR AMERICA
  6. Loosen the mounting screws and remove the front seat shield front cover (A) and front seat shield side cover (B).

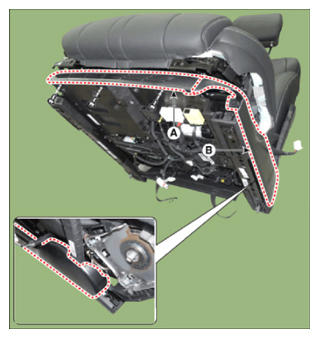

    G14723590Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the protector (A) from the front seat cushion frame.

    [Upper]

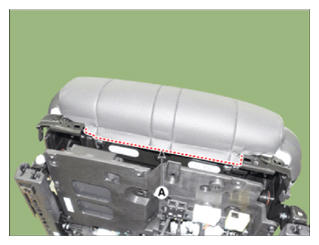

    G14723591Courtesy of HYUNDAI MOTOR AMERICA

    [Lower]

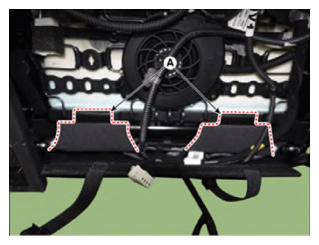

    G14723592Courtesy of HYUNDAI MOTOR AMERICA

    [LH]

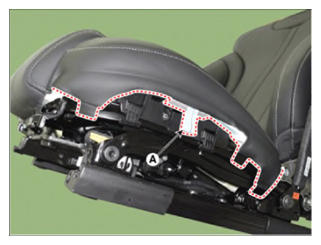

    G14723593Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

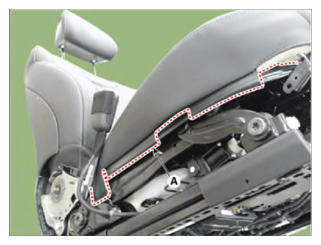

    G14723594Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).
    CAUTION:
    • Tighten the cover (C) evenly before assembling the hog ring clip (A) to prevent wrinkling of the cover.

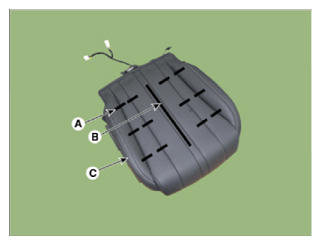

    G14723595Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).
    G14723596Courtesy of HYUNDAI MOTOR AMERICA
