Components & Components Location: Components

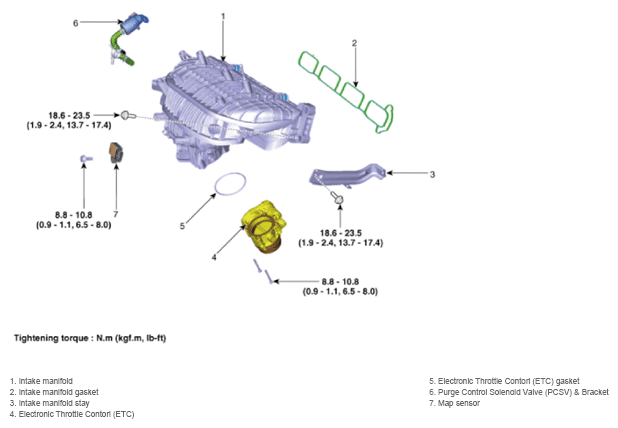

Fig 1: Intake Manifold Components Location With Torque Specifications
G14721049Courtesy of HYUNDAI MOTOR AMERICA
