Home › Genesis › 2021 › GV80 2.5T Advanced, AWD › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System - 2.5L › Water Cooled Intercooler › Components & Components Location › Components

Components & Components Location: Components

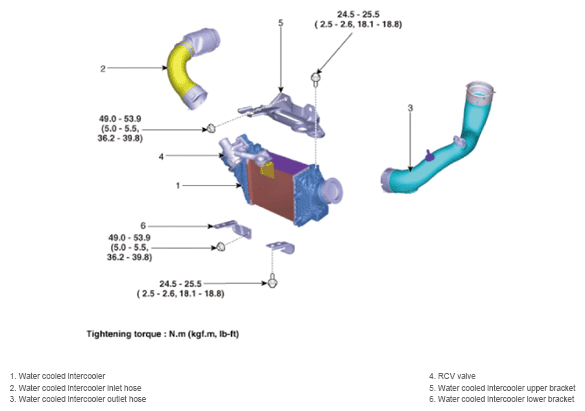

Fig 1: Water Cooled Intercooler Components Location With Torque Specifications
G14721073Courtesy of HYUNDAI MOTOR AMERICA
