Engine Coolant Temperature Sensor (ECTS) #1 - Water temperature control assembly side
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the Cowl Top Cover.
(Refer to Body - "COWL TOP COVER ")
- Remove the bulkhead (LH).

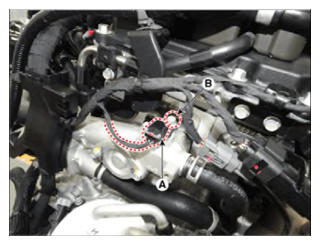

- Disconnect the engine coolant temperature sensor connector (A).
- After removing the installation bolts (B), remove the engine coolant temperature sensor.
Tightening torque:
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)
