Removal & Installation
- Remove the ignition coil.
(Refer to Ignition System - "REMOVAL & INSTALLATION ")

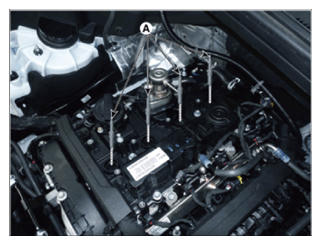

- Using a spark plug wrench, remove the spark plug (A).
Tightening torque:
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 lb.ft)
(Refer to Ignition System - "REMOVAL & INSTALLATION ")
Tightening torque:
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 lb.ft)
