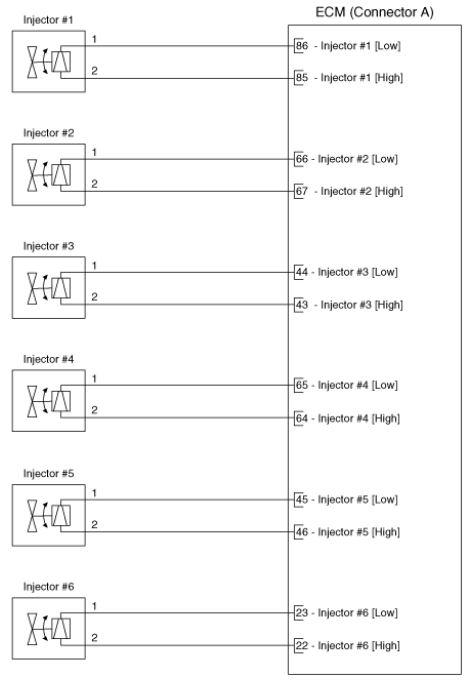

GDI Injector: Notes

WARNING: This page is about a different variant/trim than selected.
G14728729Courtesy of HYUNDAI MOTOR AMERICA
