Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.WARNING:
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the crash pad lower panel.
(Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

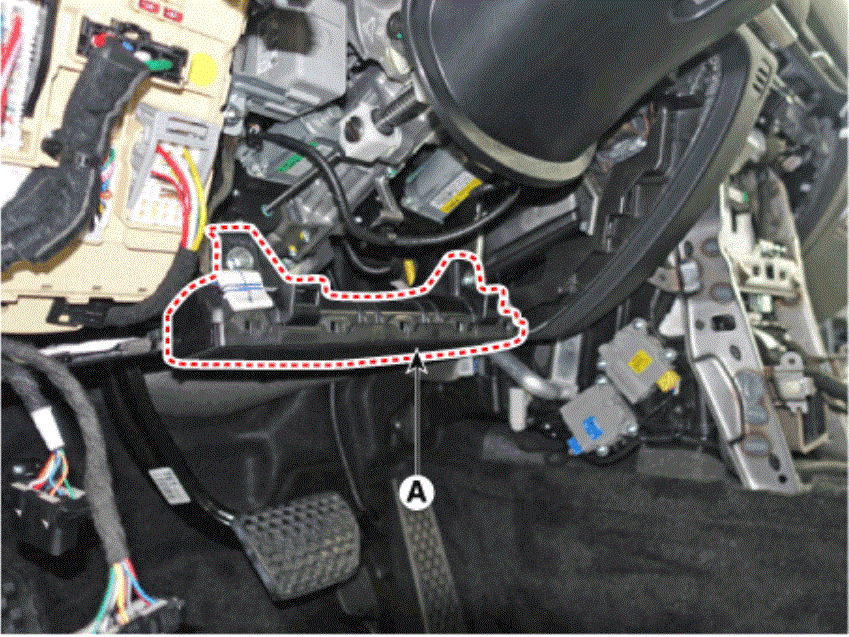

- Loosen the mounting nuts, remove the KAB (A).

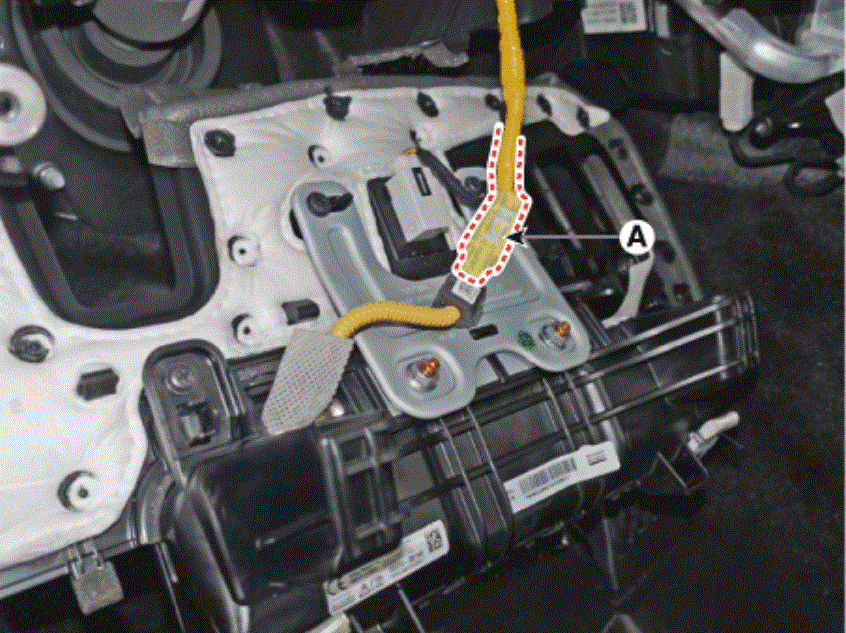

- Separate the KAB connector (A).
