Run out inspection

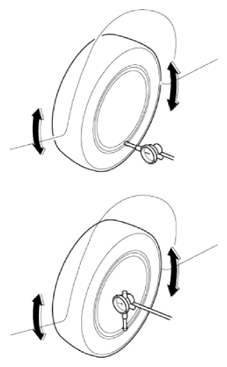

Measure the wheel run-out by using a dial indicator as shown in illustration below.

Run-out	Aluminum
Radial mm (in.)	Below 0.3 (0.0118)
Lateral mm (in.)	Below 0.3 (0.0118)

If measured value exceeds the standard value, replace the wheel.

Courtesy of HYUNDAI MOTOR AMERICA
