Special Service Tools
| Tool (Part number & Part name) | Illustration | Description |
|---|---|---|
| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transmission. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-L1100, 09200-L1200) and Adapter (SST No.: 09200-2W000). | |
| 09200-L1100 Engine support fixture (Rear) |
Removal and installation of the transaxle with the beam (SST No.: 09200-38001/3N000). | |
| 09200-C3620 Engine fixture adapter |
Removal and installation of the transmission. Use this beam (SST No.: 09200-3N000) | |
| 09200-C3610 Engine fixture assembly (supporter) |
Removal and installation of the transmission. Use this beam (SST No.: 09200-3N000) | |
| 09480-D2100 Parking switch fixing pin |
Used for fixing "P" range when installing parking switch |

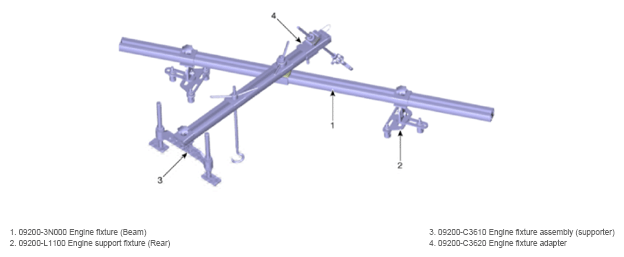

* Engine support fixture assembly drawing
Information
- When using the adapter (09200-C3620), the angle is used for each engine.
Theta 2.5 T-GDI (A: 30°)
