Rail Pressure Sensor (RPS): Specifications: Specification

• Type: Piezo-electric type

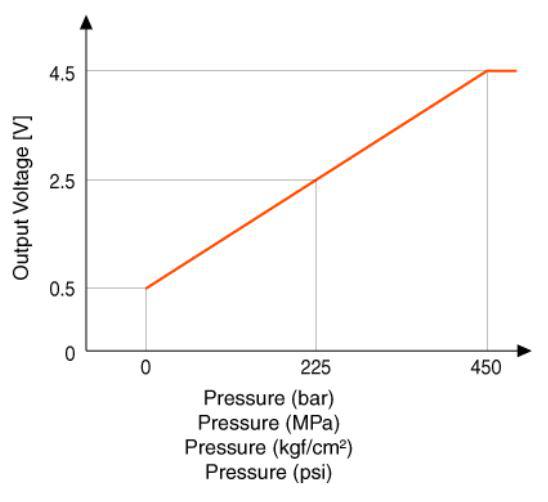

Pressure		Output Voltage (V) [Vref=5V]
bar	[MPa (kgf/cm2 , psi)]
0	0 (0, 0)	0.5
225	22.5 (229.4, 3263.3)	2.5
450	45 (458.9, 6526.7)	4.5

Courtesy of HYUNDAI MOTOR AMERICA
