Home › Genesis › 2021 › GV80 2.5T Advanced, RWD › Repair and Diagnosis › Engine Mechanical › Lubrication System - 2.5L › Components & Components Location › Components

Components & Components Location: Components

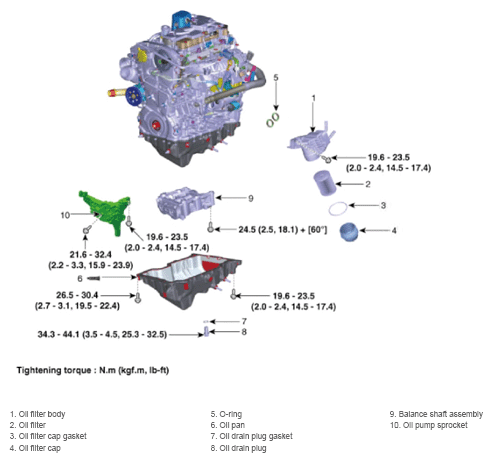

Fig 1: Lubrication System Components Location With Torque Specifications
G14720999Courtesy of HYUNDAI MOTOR AMERICA
