Components & Components Location: Components

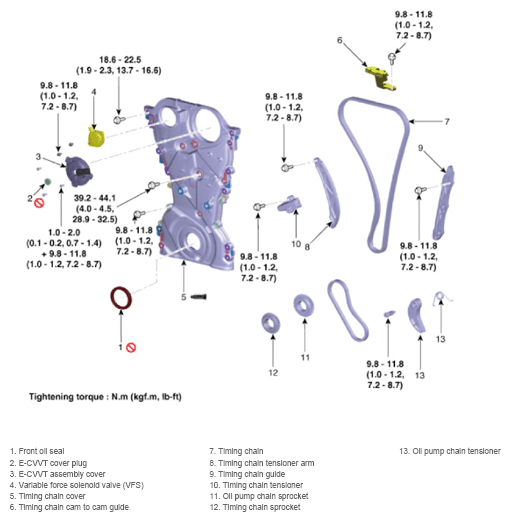

Fig 1: Timing System Components Location With Torque Specifications
G14720741Courtesy of HYUNDAI MOTOR AMERICA
