Repair Procedures: Removal

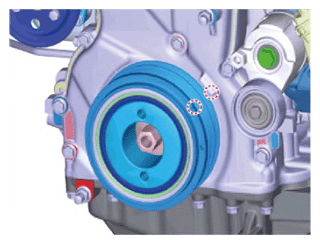

Set No. 1 cylinder to TDC. Turn the crankshaft damper pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

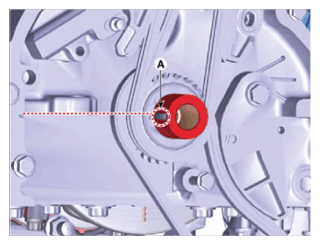

Make sure that the key (A) of crankshaft is aligned with the mounting surface of the lower crankcase in a straight line. Check that the No. 1 piston is positioned at the TDC.

Courtesy of HYUNDAI MOTOR AMERICA

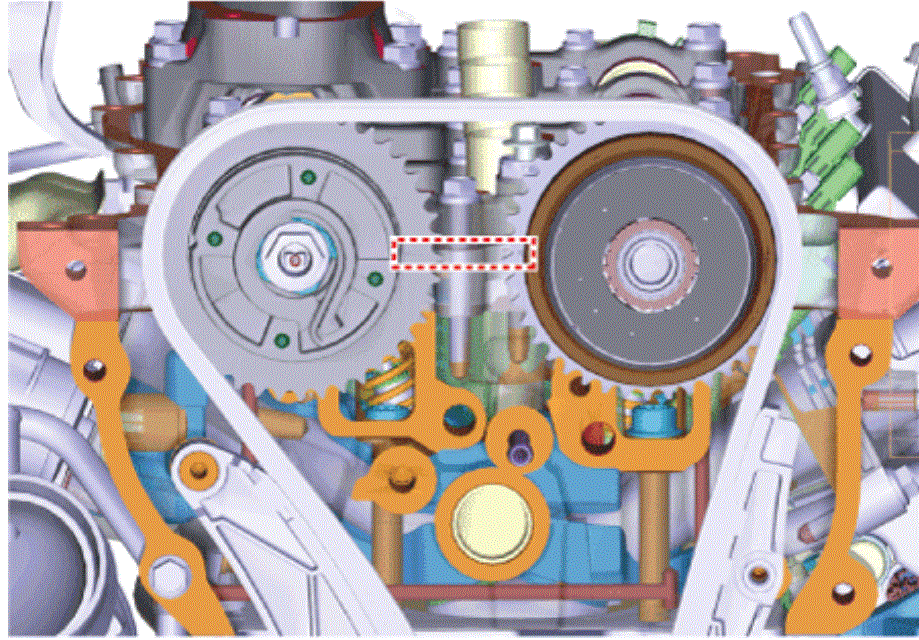

Check that the timing marks of the intake camshaft sprocket and the exhaust camshaft sprocket are in line.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If timing marks are not in line, turn the crankshaft clockwise one revolution (360°). (Do not rotate engine counterclockwise.)
Release the ratchet by pulling the link of timing chain tensioner down using a thins screwdriver. Compress the piston and then insert a stopper pin into the hole to fix the piston and then remove the tensioner (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to pop out the piston when removing the tensioner.

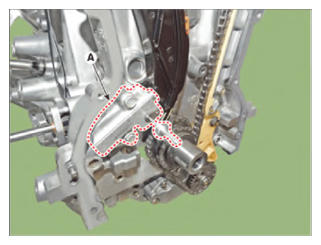

Remove the timing chain tensioner arm (A).

Courtesy of HYUNDAI MOTOR AMERICA

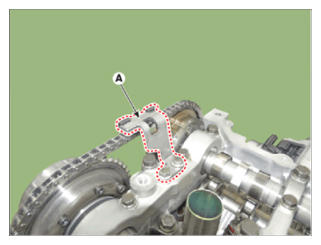

Remove the timing chain cam to cam guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

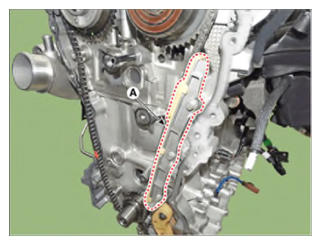

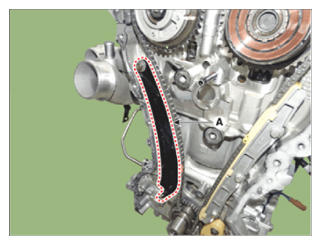

Remove the timing chain guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

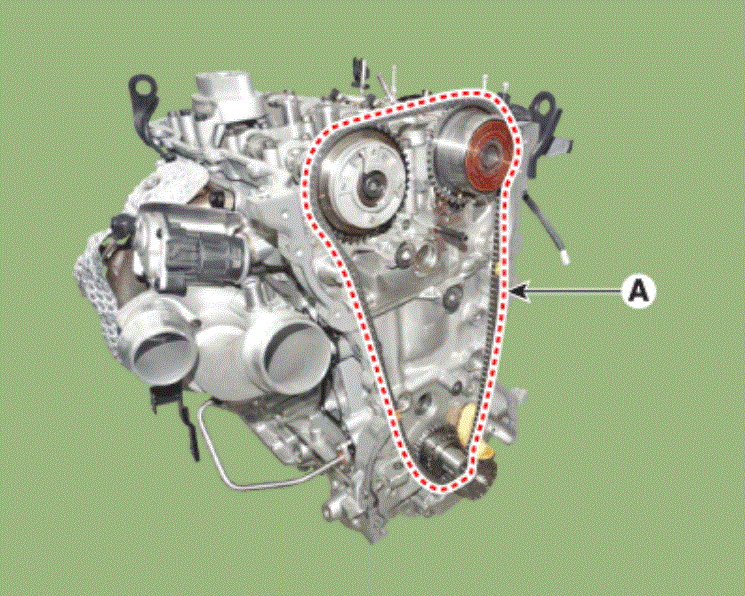

Remove the timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA

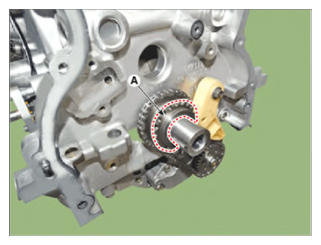

Remove the crankshaft chain sprocket (A) for the timing chain.

Courtesy of HYUNDAI MOTOR AMERICA
