Home › Genesis › 2021 › GV80 2.5T Advanced, RWD › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis - 2.5L (5 Of 6) › DTC P064A-00: Fuel Pump Control Module › DTC Information And Inspection › Monitor Current Data

Monitor Current Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Warm up the engine to normal operating temperature.

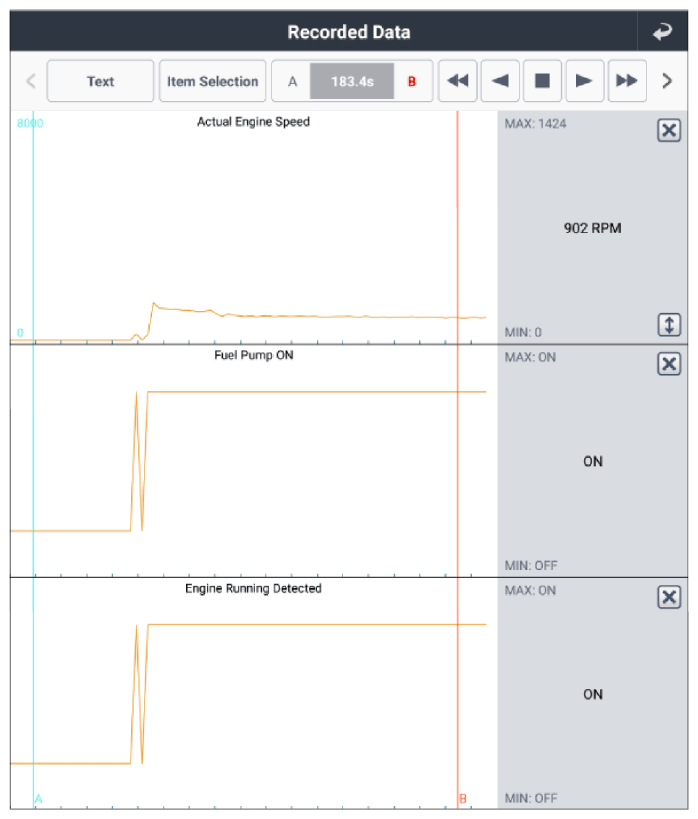

  5. Monitor following parameters in "Current Data" with GDS.
G14722309Courtesy of HYUNDAI MOTOR AMERICA
