Engine Control System Diagnosis - 2.5L (6 Of 6)
›
DTC P2270-00: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 2)
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

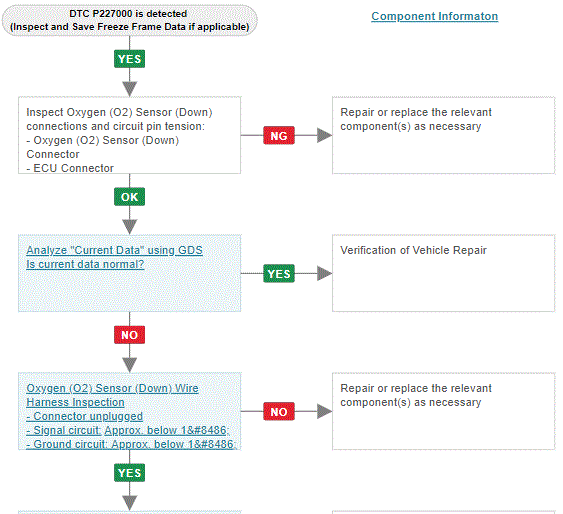

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

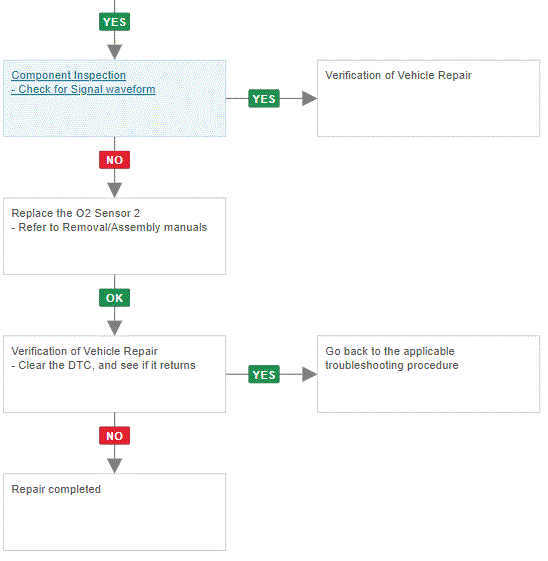

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
