Components & Components Location
›
Components Location
Components Location

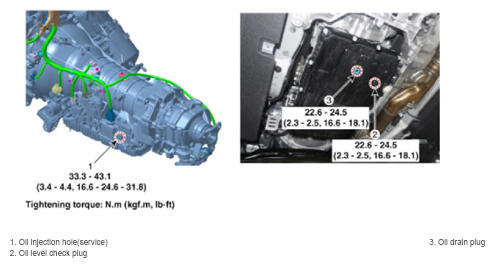

Fig 1: ATF Fluid Drain, Fill And Level Check Plugs Location With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
