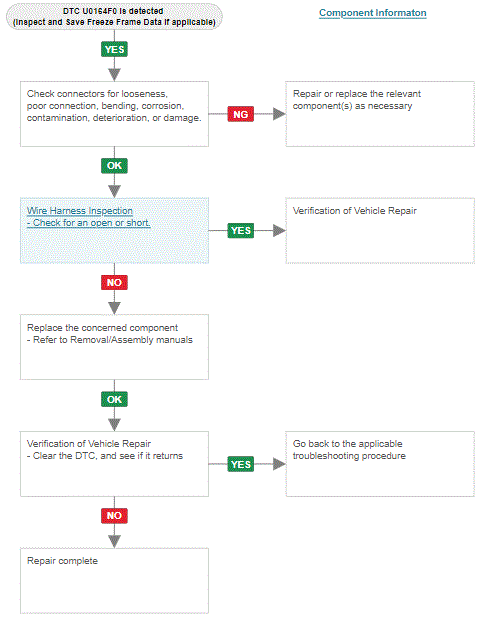

Home › Genesis › 2021 › GV80 2.5T, AWD › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis - 2.5L (6 Of 6) › DTC U0164-F0: Lost Communication With HVAC Control Module (FATC CAN Time-Out) › Troubleshooting › Diagnostic Flowchart
