Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

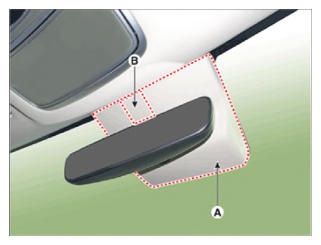

Remove the multi sensor cover (A) and (B).

Courtesy of HYUNDAI MOTOR AMERICA

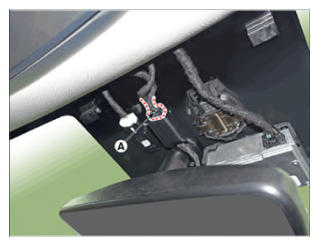

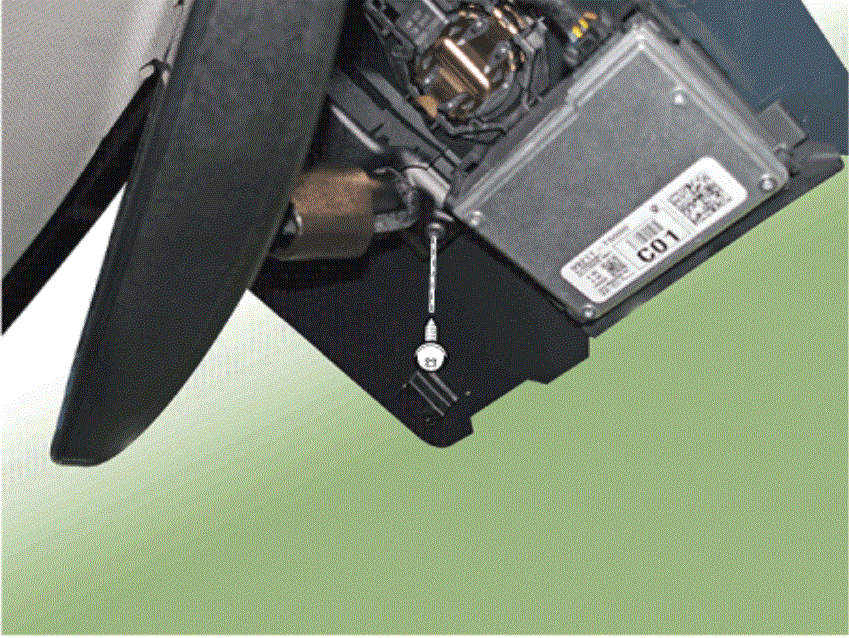

Remove the mirror mounting screw and connector (A).
Remove the mirror pulling up in the arrow direction.
NOTE: Make sure not to damage the mounting bracket when removing the mirror.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
