Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

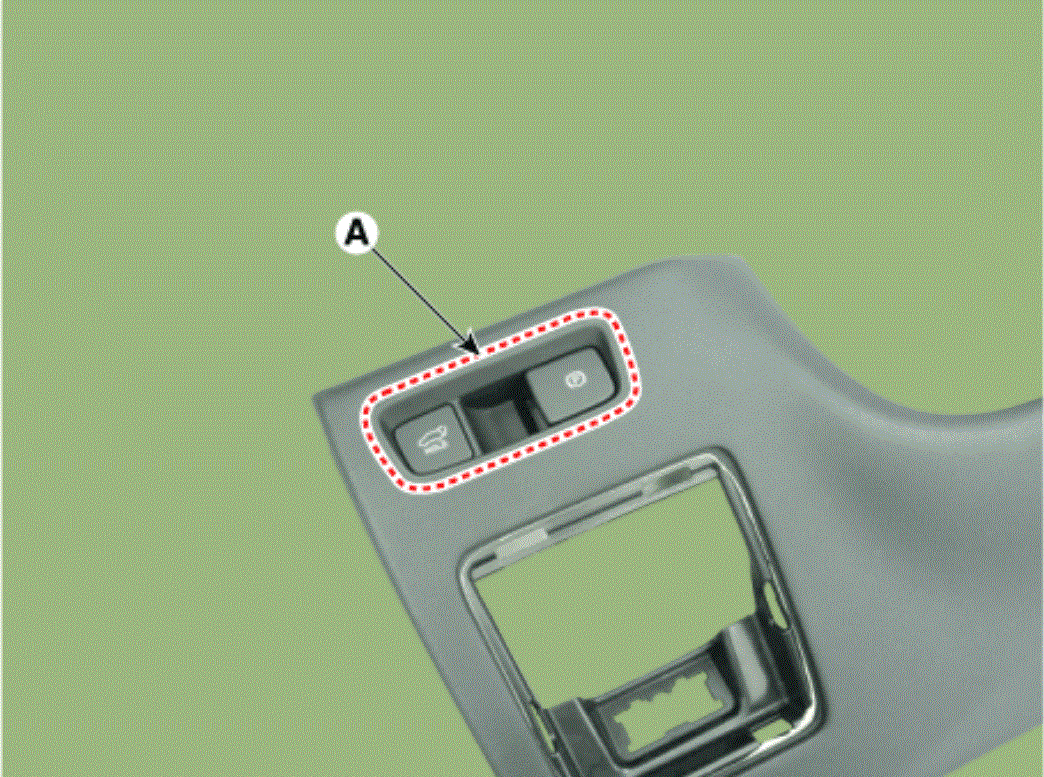

  3. Remove the EPB switch (A) after loosening the screw.
G14723026Courtesy of HYUNDAI MOTOR AMERICA
