Components & Components Location: Components

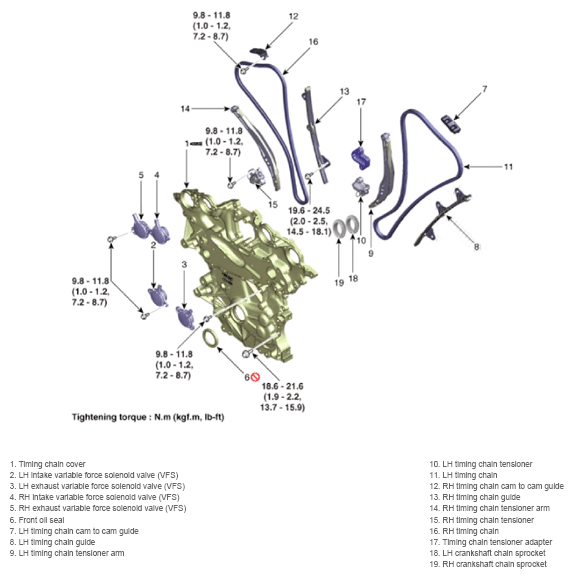

Fig 1: Timing System Components Location With Torque Specifications
G14727927Courtesy of HYUNDAI MOTOR AMERICA
