Engine Control System Diagnosis - 3.5L (3 Of 9)
›
DTC P0133-00: O2 Sensor Circuit Slow Response Bank 1 Sensor 1
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

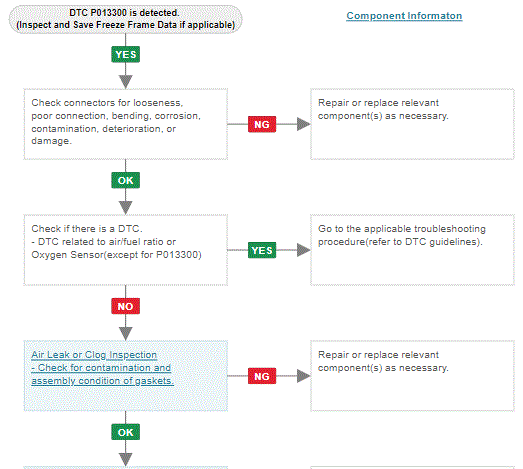

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

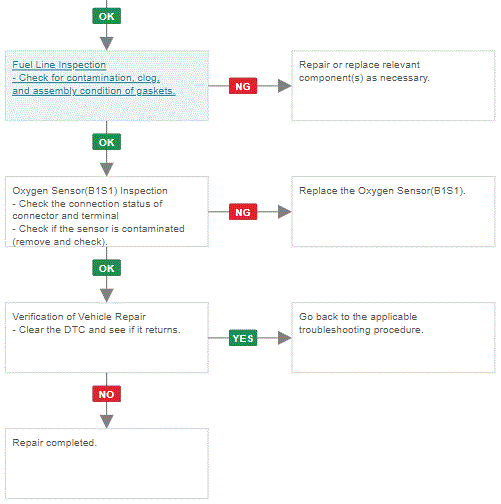

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
