Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the engine and transmission assembly.

    (Refer to Engine Mechanical System - "ENGINE AND TRANSMISSION ASSEMBLY ")

  3. Remove the transfer case assembly.[In case by AWD apply]
    1. Disconnect the AWD ECU connector (A).
    2. Loosen the bolts and then separate the wiring bracket (B).
      G14728911Courtesy of HYUNDAI MOTOR AMERICA

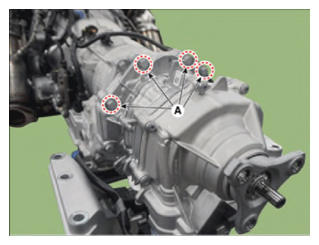

    3. Loosen the transfer case upper mounting bolts (A).
      G14728912Courtesy of HYUNDAI MOTOR AMERICA

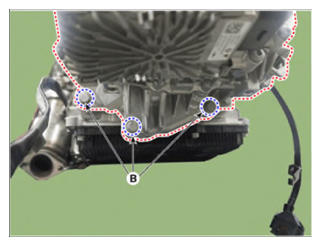

    4. Loosen the transfer case lower mounting bolts (B) and then removing the transfer case.
    G14728913Courtesy of HYUNDAI MOTOR AMERICA

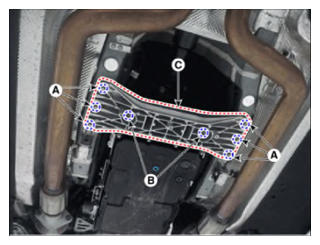

  4. Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C). [In case by 2WD apply]

    Tightening torque:

    1. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
    2. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)
    G14728914Courtesy of HYUNDAI MOTOR AMERICA

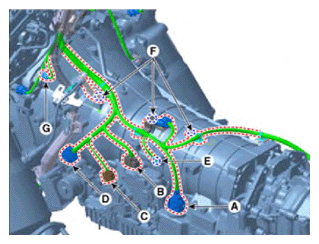

  5. Remove the items below.
    1. Main connector
    2. Parking release actuator connector
    3. Parking switch connector
    4. Electronic Oil Pump (EOP) connector
    5. Ground line
    6. Wiring bracket
    7. Crank Position Sensor connector

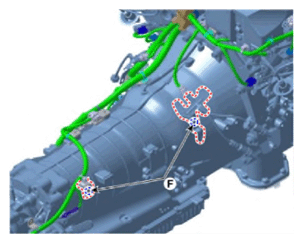

    G14728915Courtesy of HYUNDAI MOTOR AMERICA
    G14728916Courtesy of HYUNDAI MOTOR AMERICA

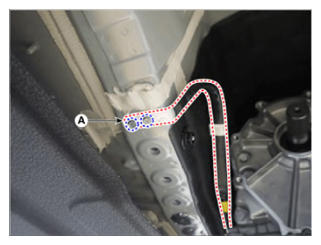

  6. Loosen the bolts and then removing the ground line (A).
    G14728917Courtesy of HYUNDAI MOTOR AMERICA

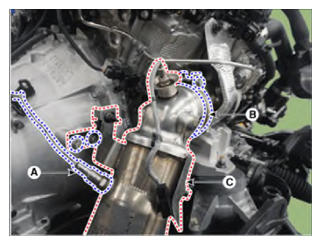

  7. Remove the Warm up Catalytic Convertor (WCC).
    1. Disconnect the HO2 sensor (A).
    2. Remove the clamp (B).
    3. Loosen the bolts and then removing the Warm up Catalytic Convertor (WCC) (C).
    G14728918Courtesy of HYUNDAI MOTOR AMERICA

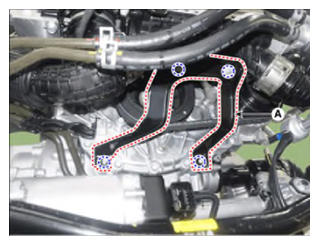

  8. Loosen the bolts and then removing the intercooler bracket (A).
    G14728919Courtesy of HYUNDAI MOTOR AMERICA

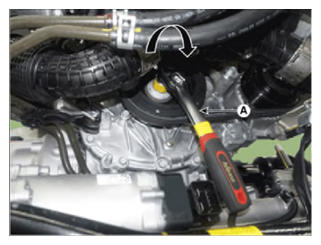

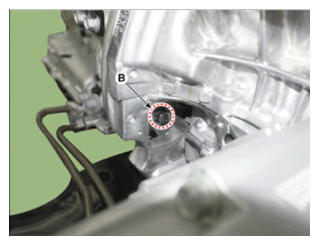

  9. Loosen the torque converter mounting bolts (B) by rotating the crankshaft using a tool (A).
    G14728920Courtesy of HYUNDAI MOTOR AMERICA
    G14728921Courtesy of HYUNDAI MOTOR AMERICA

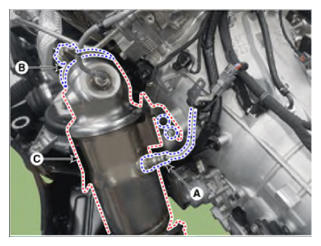

  10. Remove the Warm up Catalytic Convertor (WCC). [LH]
    1. Disconnect the HO2 sensor (A).
    2. Remove the clamp (B).
    3. Loosen the bolts and then removing the Warm up Catalytic Convertor (WCC) (C).
    G14728922Courtesy of HYUNDAI MOTOR AMERICA

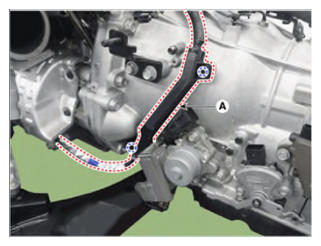

  11. Loosen the bolts and then separate the wiring bracket (A).
    G14728923Courtesy of HYUNDAI MOTOR AMERICA

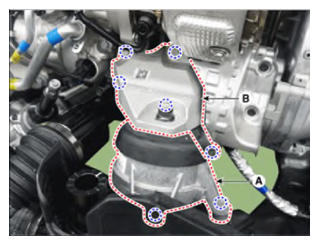

  12. Loosen the bolts and nuts and then removing the engine mounting bracket (A) and engine mounting support bracket (B) at the same time.
    G14728924Courtesy of HYUNDAI MOTOR AMERICA

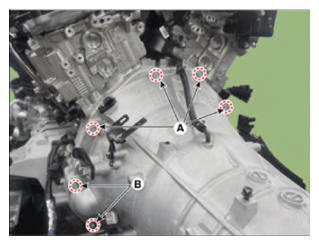

  13. Loosen the transmission upper mounting bolts (A) and the starter motor mounting bolts (B).

    Tightening torque:

    1. 78.5 - 98.1 N.m (4.3 - 5.5 kgf.m, 57.9 - 72.3 lb-ft)
    2. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
    G14728925Courtesy of HYUNDAI MOTOR AMERICA

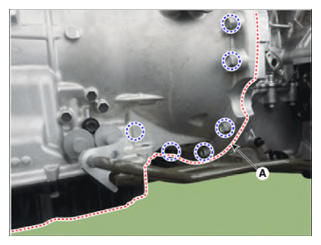

  14. Loosen the transmission bottom mounting bolts and then removing the transmission (A).

    Tightening torque:

    39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)

    G14728926Courtesy of HYUNDAI MOTOR AMERICA
  15. After separating the transmission from the engine, remove the transmission by lowering the jack slowly.
    CAUTION:
    • Be careful not to damage other nearby wiring or parts when removing the transmission assembly.
