Body Control Module Diagnosis
›
DTC C160E-00: P-CAN Bus Off
›
Troubleshooting
›

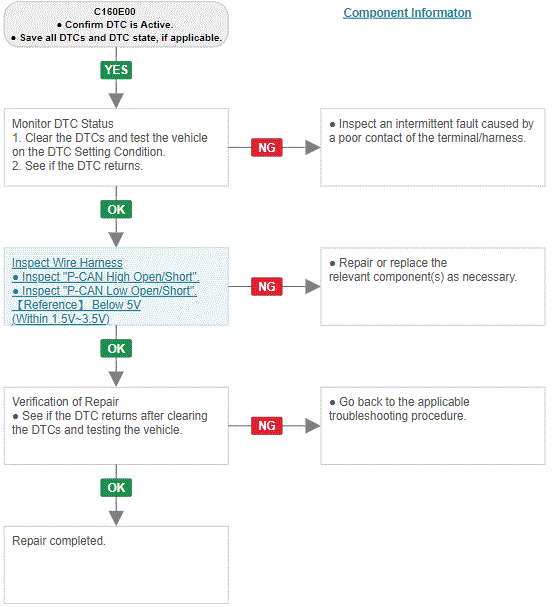

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
