Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

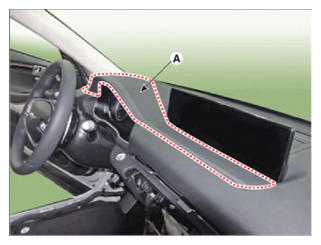

Remove the cluster fascia upper garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

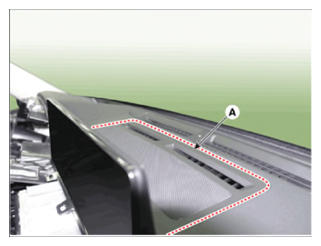

Remove the crash pad upper garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

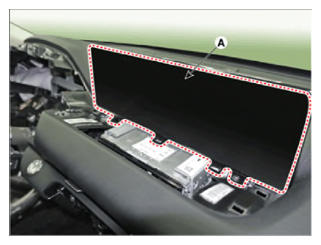

Remove the front monitor (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

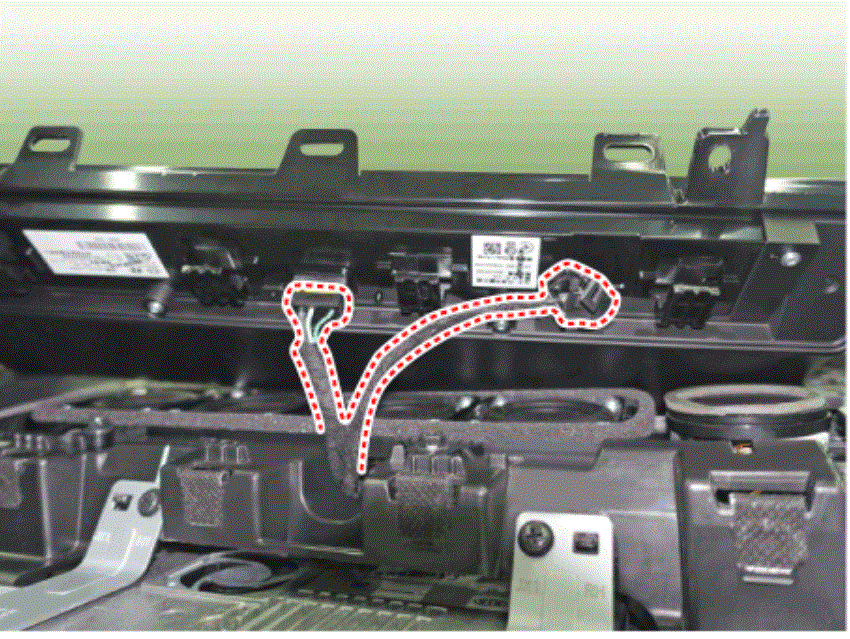

Disconnect the monitor connector and then remove the front monitor.

Courtesy of HYUNDAI MOTOR AMERICA

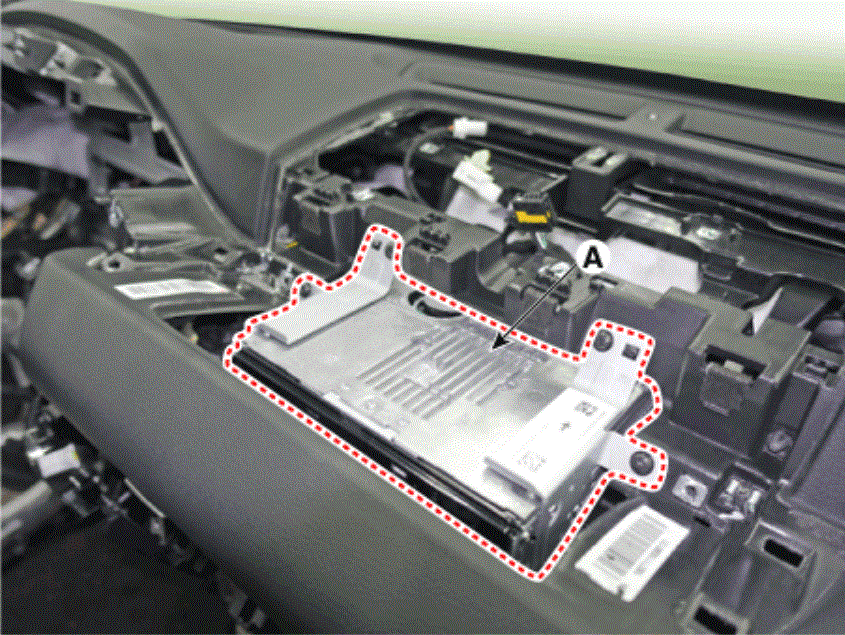

Remove the AVN head unit (A) after loosening mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

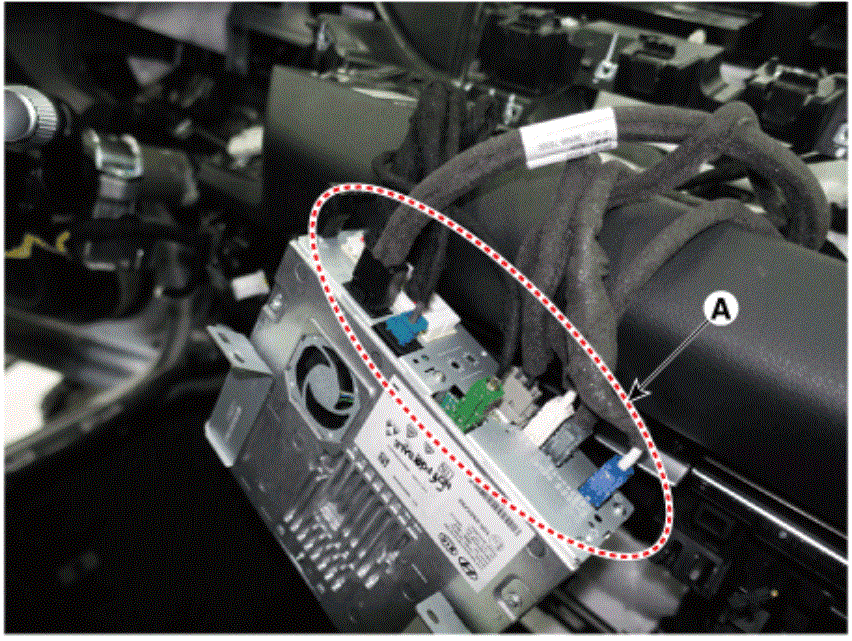

Disconnect the AVN head unit connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
