Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

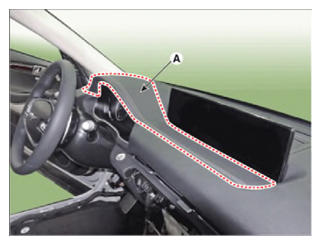

  2. Remove the cluster fascia upper garnish (A).
    G14723784Courtesy of HYUNDAI MOTOR AMERICA

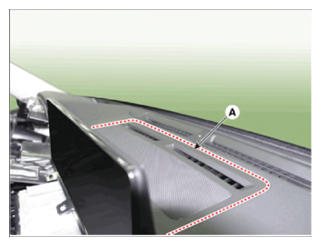

  3. Remove the crash pad upper garnish (A).
    G14723785Courtesy of HYUNDAI MOTOR AMERICA

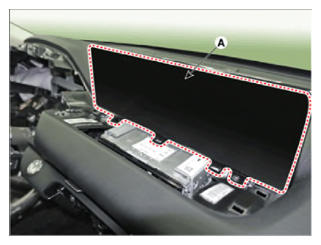

  4. Remove the front monitor (A) after loosening mounting screws.
    G14723786Courtesy of HYUNDAI MOTOR AMERICA

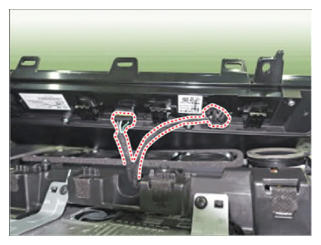

  5. Disconnect the monitor connector and then remove the front monitor.
    G14723787Courtesy of HYUNDAI MOTOR AMERICA
