Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Loosen the mounting bolt after remove the plug hall (A). And then push the outside handle (B) in the direction of arrow as shown in illustration below.
    G14723830Courtesy of HYUNDAI MOTOR AMERICA

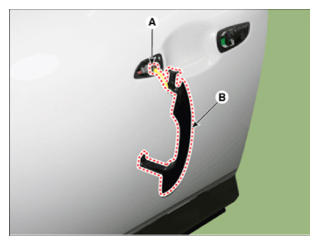

  3. Disconnect the outside handle connector (A) and then remove the door outside handle (B).
    G14723831Courtesy of HYUNDAI MOTOR AMERICA
