Front Antenna
Front Antenna
Disconnect the negative (-) battery terminal.
Remove the front bumper.
(Refer Body - "Front Bumper Cover")

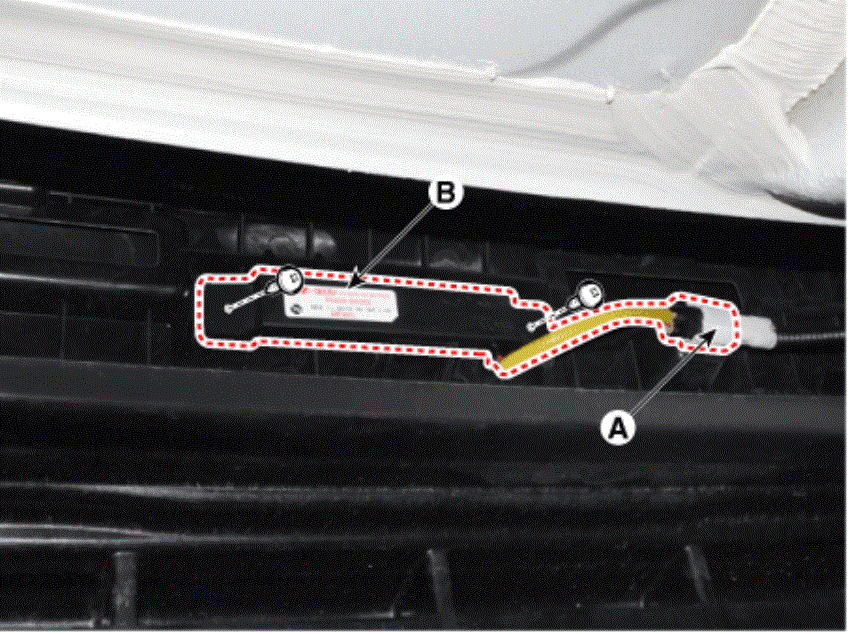

Remove the front antenna (B) after loosening mounting screws and disconnecting the connector (A).
Courtesy of HYUNDAI MOTOR AMERICA
