Interior 3 Antenna

  1. Disconnect the negative (-) battery terminal.

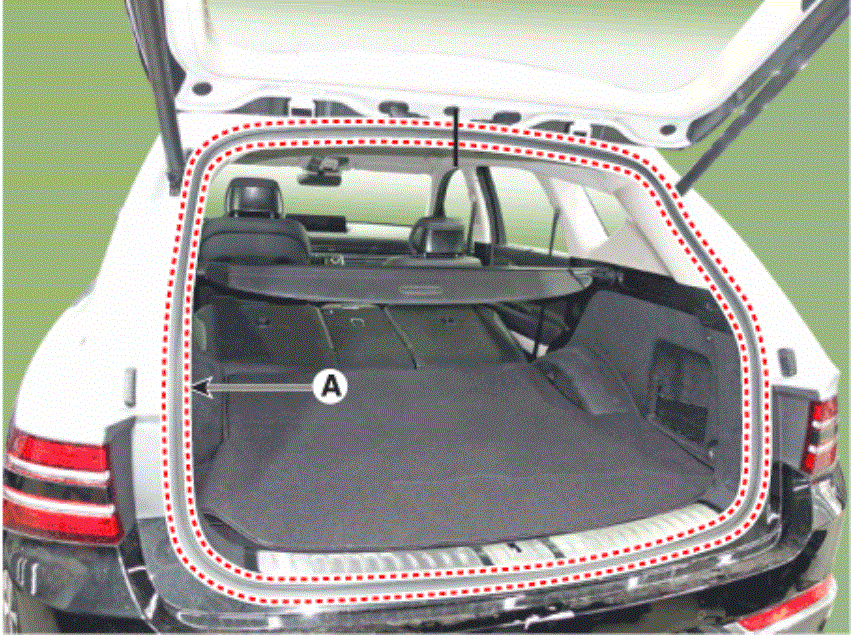

  2. Remove the tailgate weatherstrip (A).
    G14723825Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing the trunk lid weatherstrip, check the center-marking line.

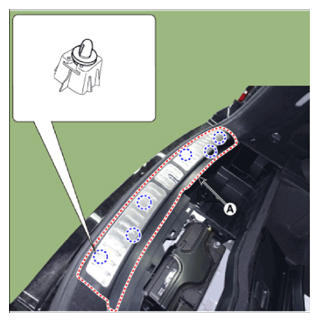

  3. Remove the rear transverse trim.
    G14723826Courtesy of HYUNDAI MOTOR AMERICA

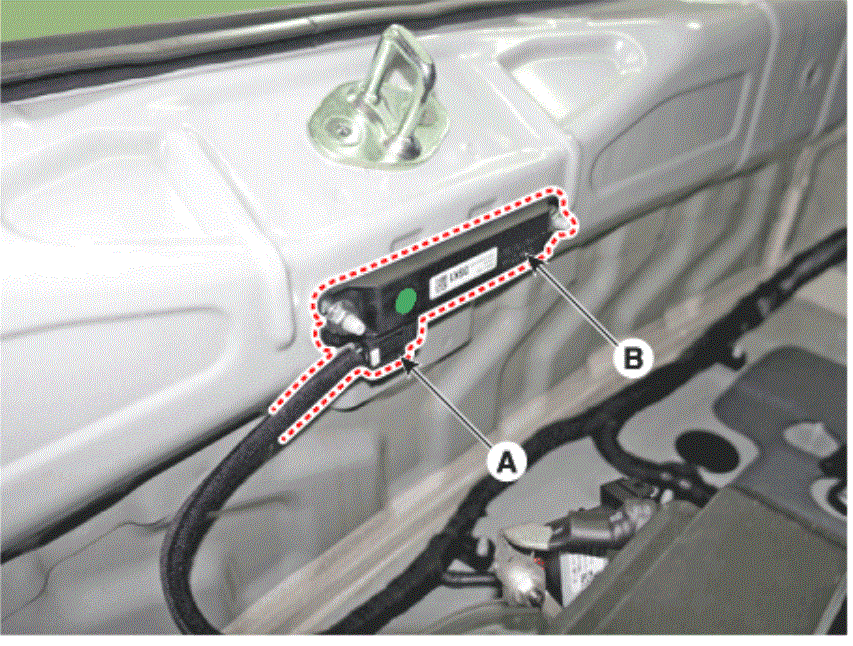

  4. Remove the interior 3 antenna (B) after loosening mounting screws and disconnecting the connector (A).
    G14723827Courtesy of HYUNDAI MOTOR AMERICA
