Repair Procedures: Replacement

CAUTION:
  • When removing the fender, wrap protective tape around a screwdriver or remover not to damage components
  • Put on gloves to prevent hand injuries
  1. Remove the front wheel.

    (Refer to Suspension System - "WHEEL ")

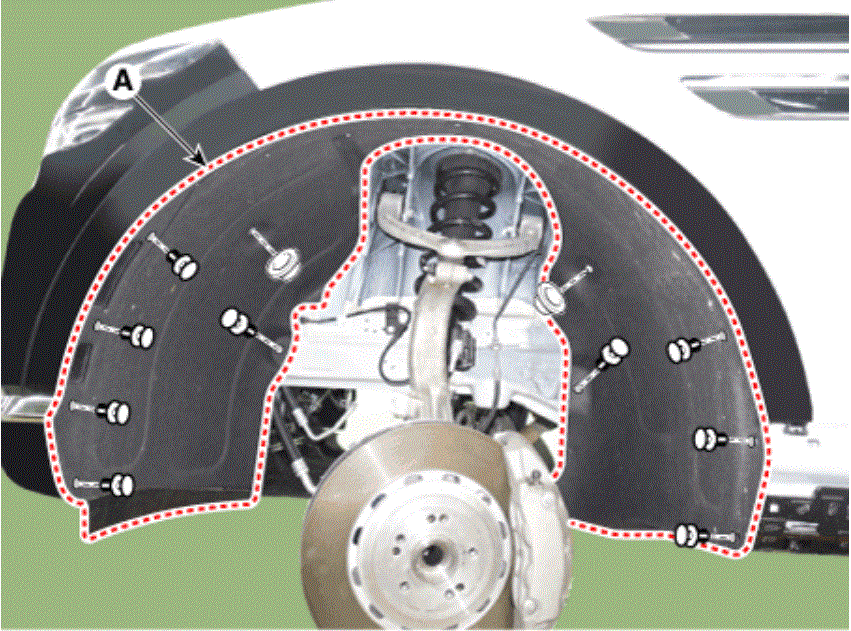

  2. Detach the mounting clips and then remove the front wheel guard (A).
    G14723109Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the front bumper assembly.

    (Refer to Front Bumper - "FRONT BUMPER ASSEMBLY ")

  4. Remove the head lamps.

    (Refer to Body Electrical System - "HEAD LAMPS ")

  5. Remove the side sill molding.

    (Refer to Body Side Molding - "SIDE SILL MOLDING ")

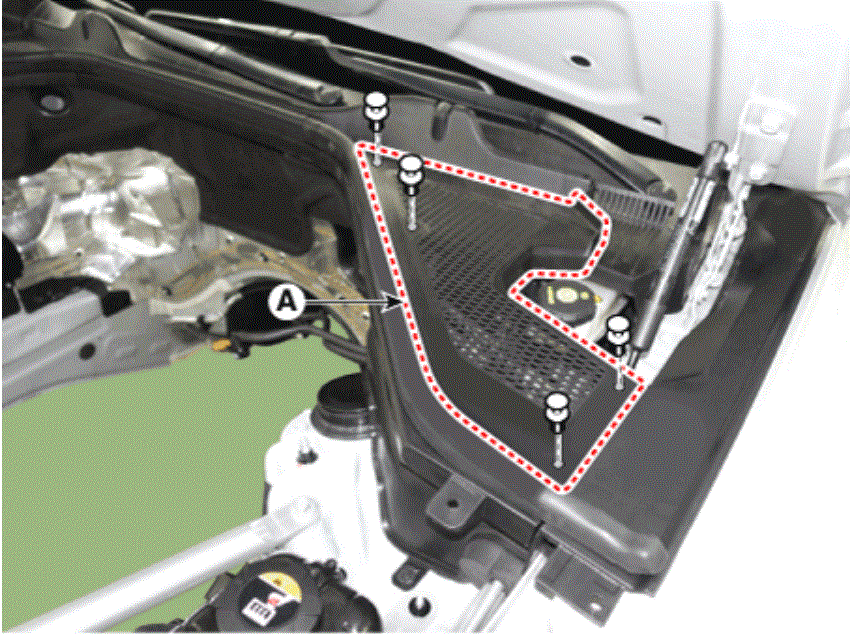

  6. Detach the mounting clips and then remove the engine sind cover (A).
    G14723110Courtesy of HYUNDAI MOTOR AMERICA

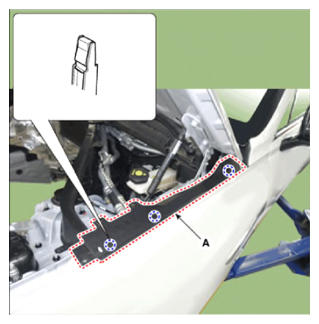

  7. Using a flat-tip screwdriver or remover and then remove the fender upper garnish (A).
    G14723111Courtesy of HYUNDAI MOTOR AMERICA

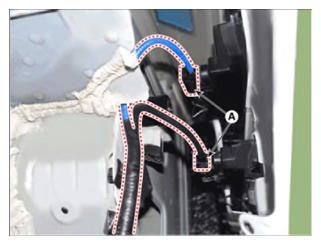

  8. Disconnect the turn signal lamp connector (A).
    G14723112Courtesy of HYUNDAI MOTOR AMERICA

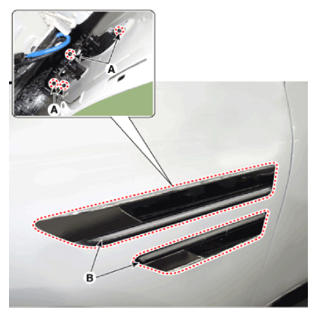

  9. Press the lock pin (A) and then remove the turn signal lamp (B).
    G14723113Courtesy of HYUNDAI MOTOR AMERICA

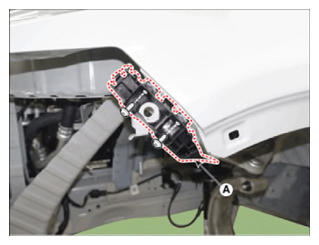

  10. Loosen the mounting screws and then remove the front bumper side mounting bracket (A).
    G14723114Courtesy of HYUNDAI MOTOR AMERICA

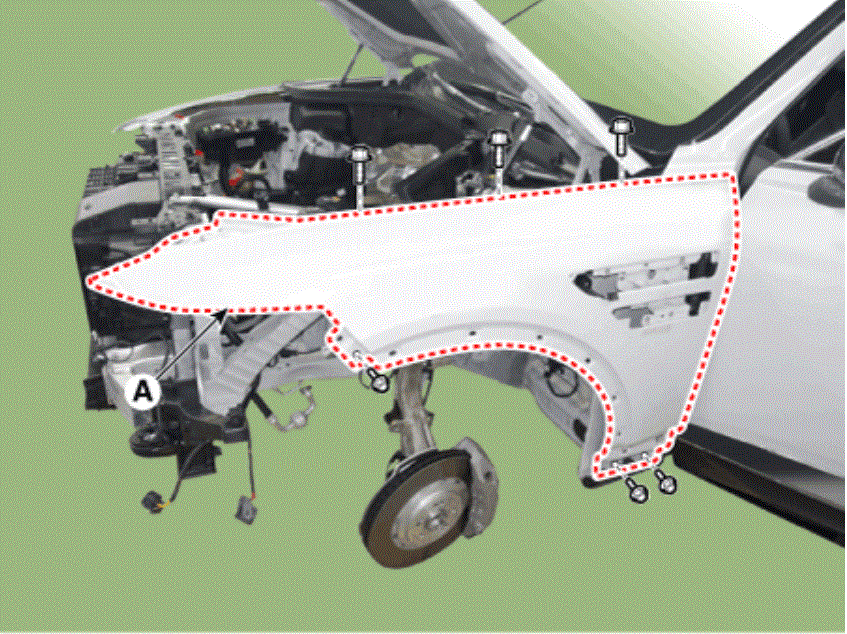

  11. Loosen the mounting bolts and then remove the fender assembly (A).
    G14723115Courtesy of HYUNDAI MOTOR AMERICA
  12. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
