Removal
›
Control Unit
Control Unit
Remove the 3rd row seat assembly.
(Refer to Body - Rear Seat Assembly - "
REPLACEMENT
" - Third-Row)

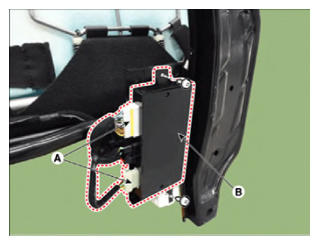

Remove the control unit (B) after disconnecting the connector (A).
Courtesy of HYUNDAI MOTOR AMERICA
