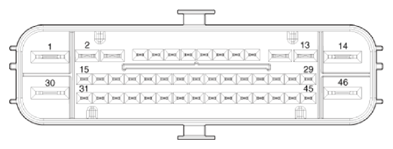

| 1 |
Battery power B + |
| 2 |
MOC motor ground (RR) |
| 3 |
MOC motor power (RR) |
| 4 |
Main-CAN (High) |
| 5 |
Main-CAN (Low) |
| 6 |
IGN |
| 7 |
Pedal stroke sensor power |
| 8 |
Sub-CAN (High) |
| 9 |
Sub-CAN (Low) |
| 10 |
Pedal stroke sensor ground |
| 11 |
Shield ground |
| 12 |
MOC motor ground (RL) |
| 13 |
MOC motor power (RL) |
| 14 |
Ground |
| 15 |
- |
| 16 |
VDC OFF Switch |
| 17 |
Wheel speed sensor signal (FL) |
| 18 |
Wheel speed sensor signal (FR) |
| 19 |
- |
| 20 |
MOC switch 1 |
| 21 |
ESS signal input |
| 22 |
Pedal sensor signal input |
| 23 |
Pedal sensor signal input |
| 24 |
AVH ON/OFF switch |
| 25 |
Pedal stroke sensor power |
| 26 |
- |
| 27 |
Wheel speed sensor signal input (FL) |
| 28 |
Wheel speed sensor signal input (FR) |
| 29 |
Door switch signal |
| 30 |
- |
| 31 |
Pedal sensor signal input |
| 32 |
DBC switch |
| 33 |
Wheel speed sensor signal input (RL) |
| 34 |
Wheel speed sensor signal input (RR) |
| 35 |
MOC switch |
| 36 |
Stop lamp switch |
| 37 |
MOC switch 2 |
| 38 |
- |
| 39 |
- |
| 40 |
Speed sensor signal |
| 41 |
- |
| 42 |
Wheel speed sensor ground (RL) |
| 43 |
Wheel speed sensor ground (RR) |
| 44 |
- |
| 45 |
- |
| 46 |
Ground |
