Repair Procedures: Installation

Install the dynamic damper.

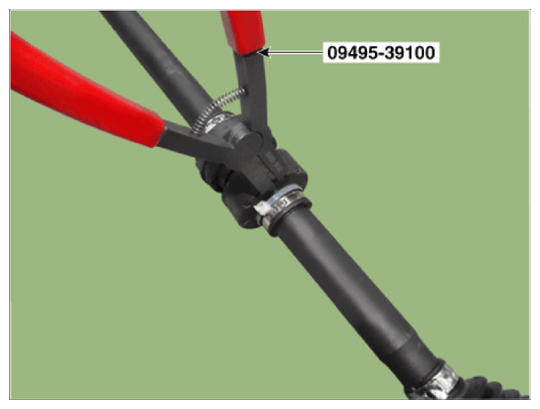

Using the SST (09495-39100), secure the dynamic damper bands.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the boot band.
Install the TJ joint assembly.
(Refer to Driveshaft Assembly - "INSTALLATION ")
Install the front driveshaft.
(Refer to Driveshaft Assembly - "INSTALLATION ")
Check the alignment.
(Refer to Suspension System - "ALIGNMENT - Front Alignment")
