Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the Second/Third row seat assembly.
(Refer to Body - "REPAIR PROCEDURES ")
- Remove the rear floor carpet.
(Refer to Body - "FLOOR CARPET ")

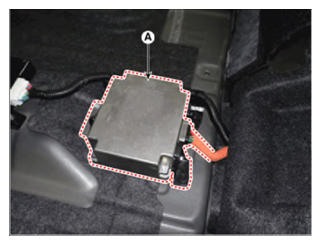

- Disconnect the connector, loosen the mounting bolts and remove the A/C Inverter unit (A).
