Repair Procedures: Removal
CAUTION:
Handling wireless charging system parts by wet hands may cause electric shock.
- Disconnect the negative (-) battery terminal.
- Remove the floor console cover assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

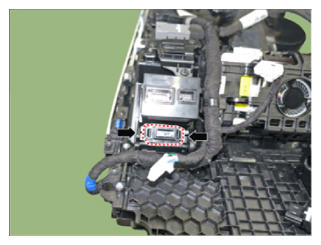

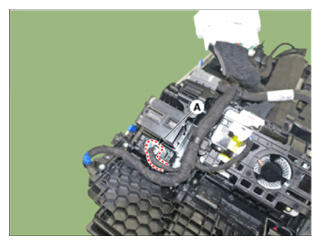

- Disconnect the wireless charging lamp connector (A).
- Disengage a fixed hook and then remove the wireless charging lamp.
