Repair Procedures: Inspection
If a part of the head up display footage is distorted or it is not at eye level with the driver a Global Diagnostic System (Diagnostic tool) can be used to carry out calibration.
- In case calibration is required
- When replacing the head-up display unit.
- In case the footage is distorted after replacing the windshield (double vision removed after film is inner mounted to the glass).
- When the HUD mounted main crash pad is removed/installed or replaced.
- When the video installation location of the Head-up display unit is not at eye level of the driver and the focus is inconsistent.
- Calibration items
| No | Footage calibration functions | Calibration cases |
|---|---|---|

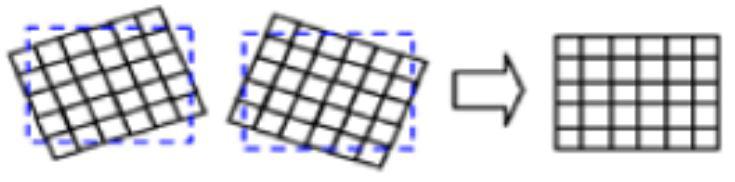

| 1 | Rotation: Calibration in the half-circle/clockwise direction based on the center | |

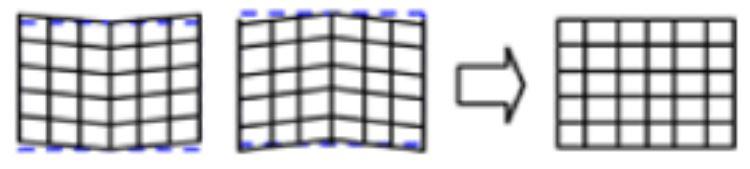

| 2 | Smile: Calibration based vertically on the center | |

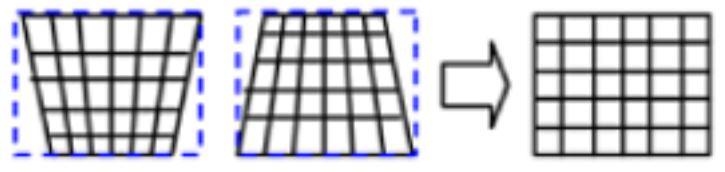

| 3 | Slanted (up/down): Calibration according to an upward/downward slant | |

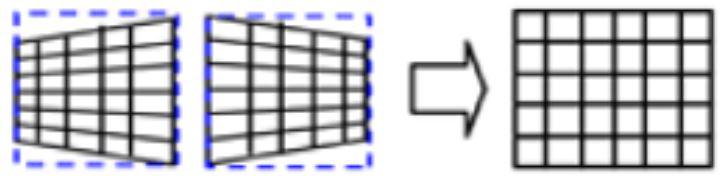

| 4 | Slanted (left/right): Calibration according to a left/right slant | |
| 5 | Parallel compensation | |

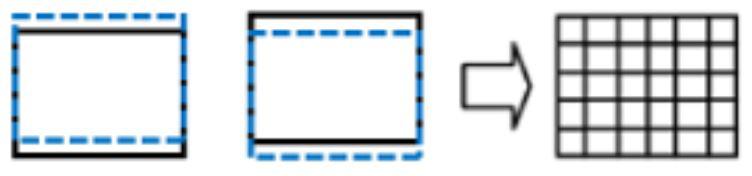

| 6 | Move location of mark to upward/downward: Compensation according to eye height | |
| 7 | Initialization: Changed to the status of before video compensation |
