Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the instrument cluster.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

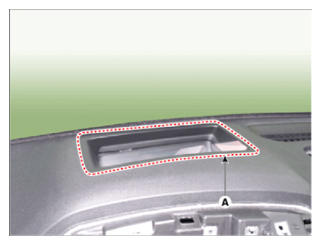

  3. Remove the head up display upper cover (A).
    G14727259Courtesy of HYUNDAI MOTOR AMERICA

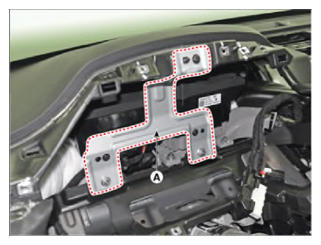

  4. Remove the head up display bracket (A) after loosening nuts and screws.
    G14727260Courtesy of HYUNDAI MOTOR AMERICA

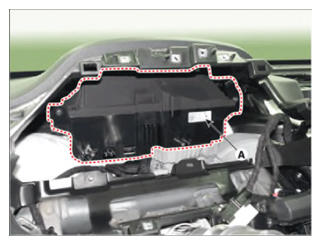

  5. Remove the head up display unit (A) and then remove the head up display unit after loosening the mounting screws.
    G14727261Courtesy of HYUNDAI MOTOR AMERICA
