Home › Genesis › 2021 › GV80 3.5T Advanced › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System - 3.5L › Intake Manifold › Components & Components Location › Components

Components & Components Location: Components

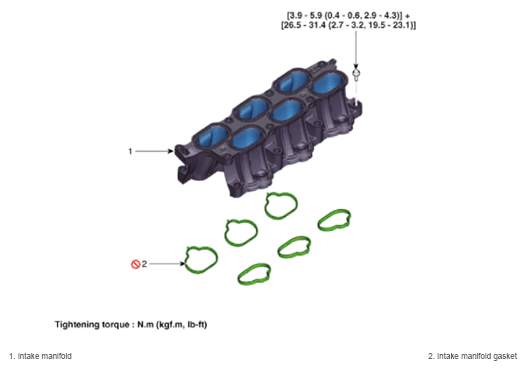

Fig 1: Intake Manifold Components Location With Torque Specification
G14728339Courtesy of HYUNDAI MOTOR AMERICA
