Removal and Installation
- Disconnect the battery negative terminal from the trunk room.
- Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
- Remove the LH and RH air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the surge tank.
(Refer to Intake and Exhaust System - "SURGE TANK ")

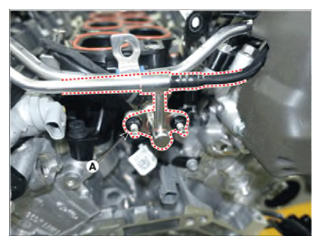

- Remove the low pressure fuel feed pipe (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

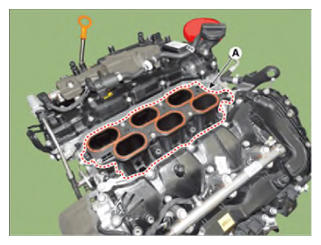

- Remove the intake manifold (A) with the low pressure delivery pipe.
Tightening torque:
1st step: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)
2nd step: 26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb.ft)
NOTE:- When installing, replace with a new gasket.
- Remove the low pressure delivery pipe.
(Refer to Engine Control/Fuel System - "DELIVERY PIPE ")
- Install in the reverse order of removal.
NOTE:
1st step: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

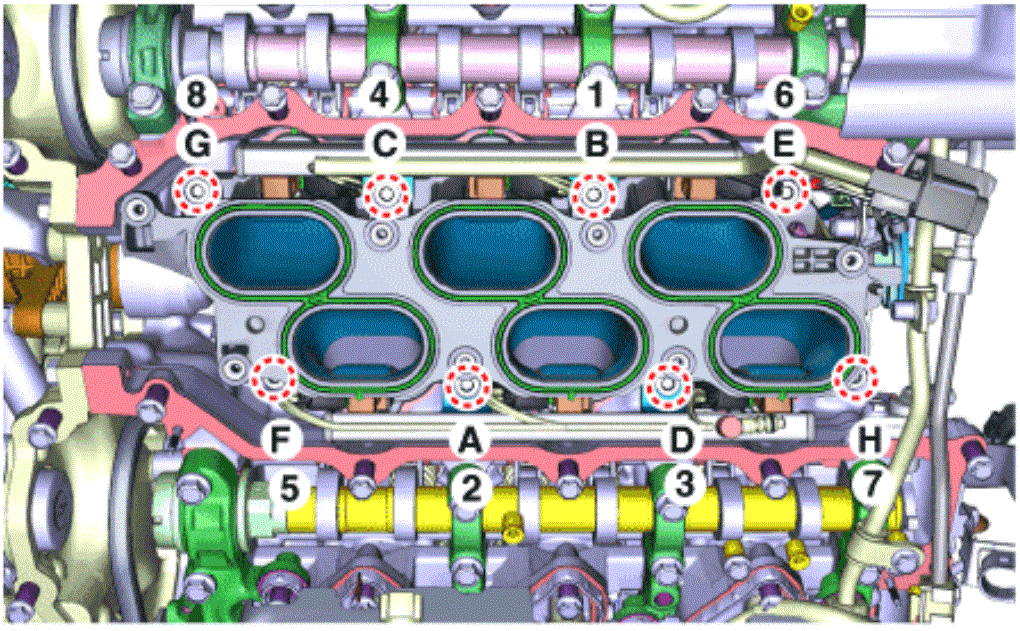

- When installing the intake manifold, tighten the bolts with pre-torque first, and then tighten the bolts with specified torque in the sequence shown.
- a-h: 1st step
- 1-8: 2nd step
1st step: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)
2nd step: 26.5 - 31.4 N.m (2.7 - 3.2 kgf.m, 19.5 - 23.1 lb.ft)
3rd step: Repeat 2nd step twice or more.
- When assembling the intake manifold mounting bolts, be careful not to damage the MPI wiring.
