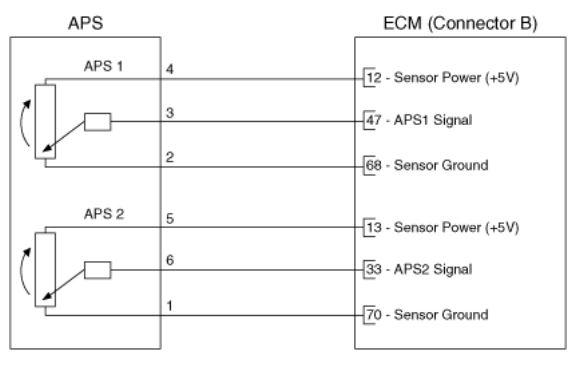

Home › Genesis › 2021 › GV80 3.5T Advanced › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.5L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram › Notes
