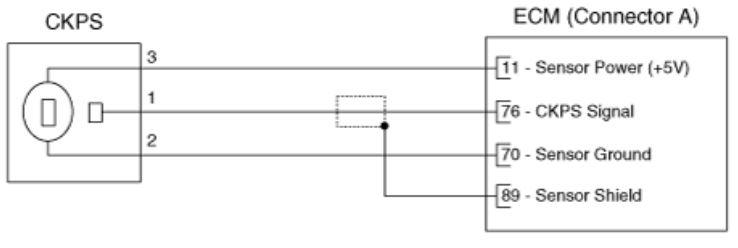

Home › Genesis › 2021 › GV80 3.5T Advanced › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.5L › Crankshaft Position Sensor (CKPS) › Schematic Diagrams › Circuit Diagram › Notes
