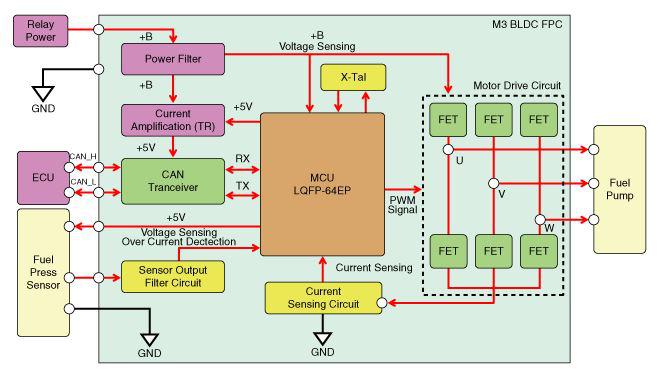

Home › Genesis › 2021 › GV80 3.5T Advanced › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 3.5L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
