Components Location

WARNING: This page is about a different variant/trim than selected.

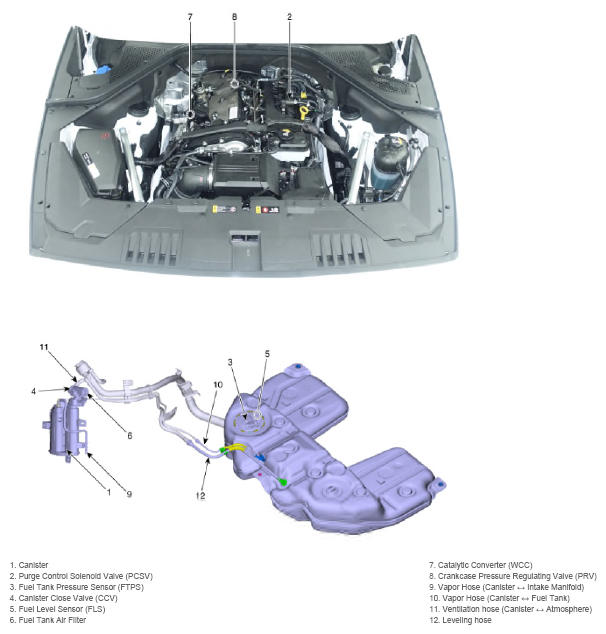

G14721257Courtesy of HYUNDAI MOTOR AMERICA

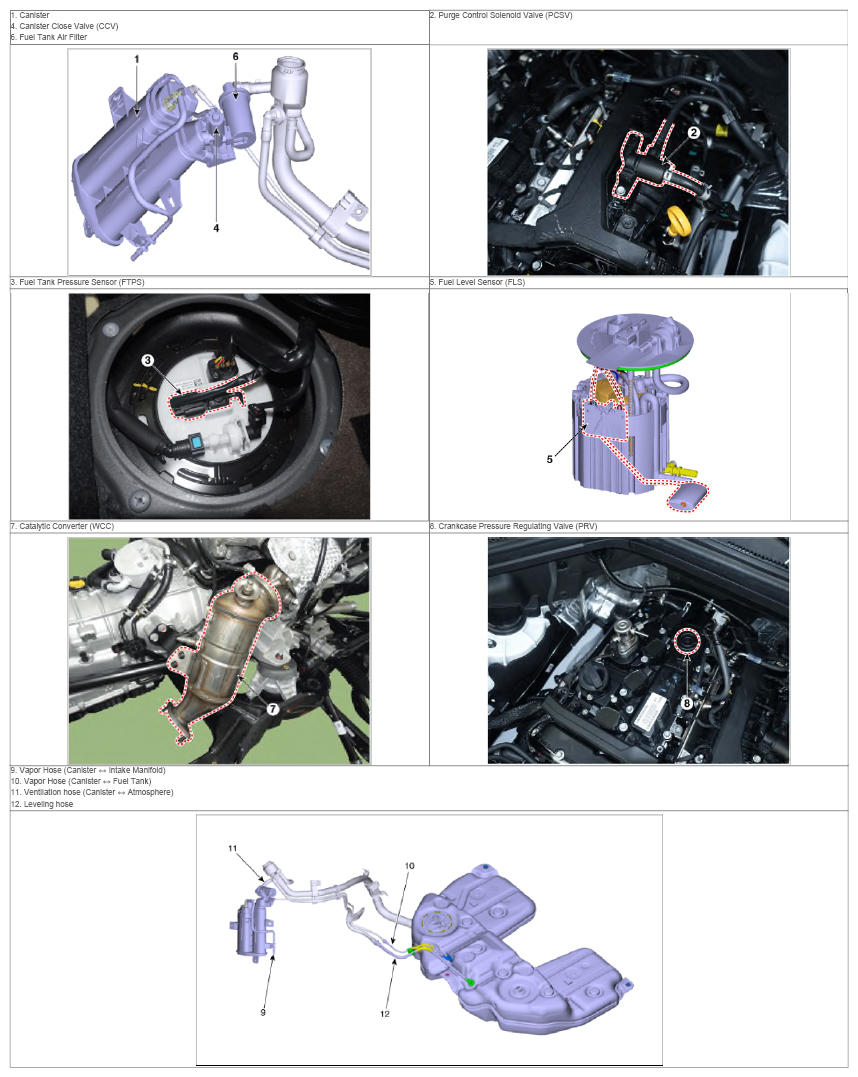

G14721258Courtesy of HYUNDAI MOTOR AMERICA
