Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

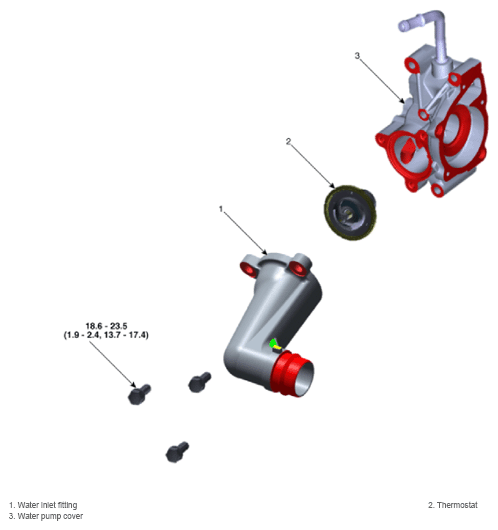

Fig 1: Water Pump Components Location With Torque Specification (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

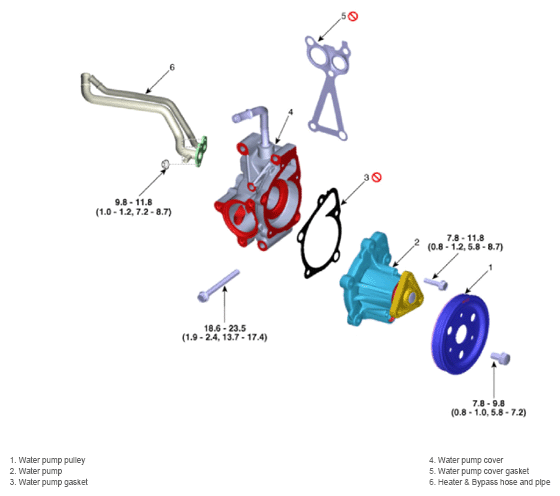

Fig 2: Water Pump Components Location With Torque Specification (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
