Repair Procedures: Replacement

  1. Recover the refrigerant with a recovery/recycling/charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the front bumper assembly.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

  4. Remove the Active Air Flap (AAF).

    (Refer to Engine Mechanical System - "ACTIVE AIR FLAP (AAF) ")

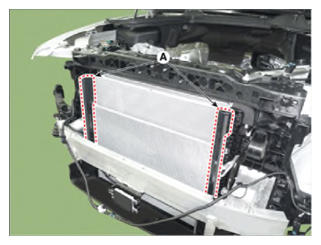

  5. Remove the side air guard (A).
    G14727409Courtesy of HYUNDAI MOTOR AMERICA

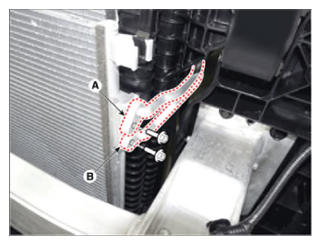

  6. Loosen the mounting nuts and separate the discharge line (A) and liquid line (B).
    G14727410Courtesy of HYUNDAI MOTOR AMERICA

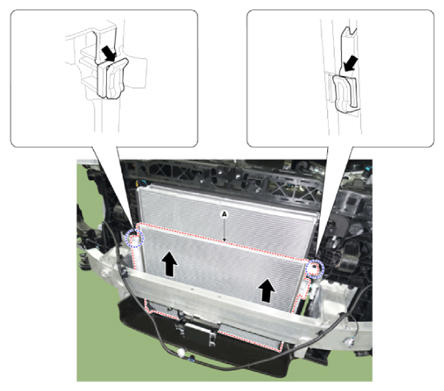

  7. Press the lock pin and remove the condenser assembly (A) from radiator assembly.
    G14727411Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
NOTE:
  • If you're installing a new condenser, add refrigerant oil.
  • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the
  • Be careful not to damage the radiator and condenser fins when installing the condenser.
  • Charge the system, and test its performance.
