Repair Procedures: Replacement
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body (Interior and Exterior) - "GLOVE BOX ")
- Loosen the mounting screw and them remove the PM sensor (A) form the main crash pad assembly.

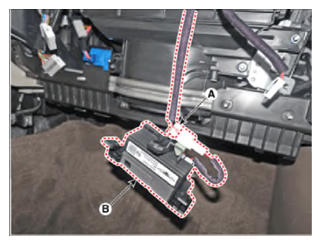

- Disconnect the PM sensor connector (A) and then remove the PM sensor (B).
- Install in the reverse order of removal.
Information
- Replace any damaged clips (or retainers or fasteners).
